VCU Pro Onboard Unit > Telematics Gateway

Secure connection for the monitoring of your system

KEY FACTS

Stable & secure

Two independent processors guarantee a stable connection

Versatile

Variety of interfaces, including Bluetooth, WLAN, GNSS

Reliable

Secure acquisition and processing of sensor data

What can VCU Pro Onboard Unit > Telematics Gateway provide?

With the series component VCU Pro Onboard Unit, ZF offers operators a new generation of an advanced and robust telematics gateway. With the unit sensor data, metrics such as temperature or acceleration can be recorded and processed. The VCU Pro Onboard Unit supports WiFi and Bluetooth, as well as all common GNSS, and guarantees a secure connection via mobile radio to the ZF IoT Cloud.

Details

Technical Information

Dimensions (l × w × h): 200 mm × 122 mm × 40 mm
Operating temperature: -40 °C to +75 °C
Power Supply: 9 to 36 V DC
CPU: ARM Cortex A8 ® 1 GHz
RAM: 1 GB
Internal memory: 4 GB Flash
Sensors: 3D accelerometer
3D gyroscope
GNSS: GPS, Glonass, BeiDou, Galileo
Protection class: IP5K5
Certificates: CE
FCC
WEEE
Only available in the Infrastructure and Driveline Monitoring solution

Benefits

  • Four CAN interfaces, four analog input and four analog output ports
  • Permanent tracking of various parameters of vehicle, rail tracks and driving behavior via ZF IoT Cloud
  • Secure over-the-air-updates for the entire system
  • Together with the Heavy Duty TAG, the VCU Pro Onboard Unit enables an individually tailored condition monitoring system for any application

Function

Predicitive Maintenance Planning with ZF Infrastructure and Driveline Monitoring

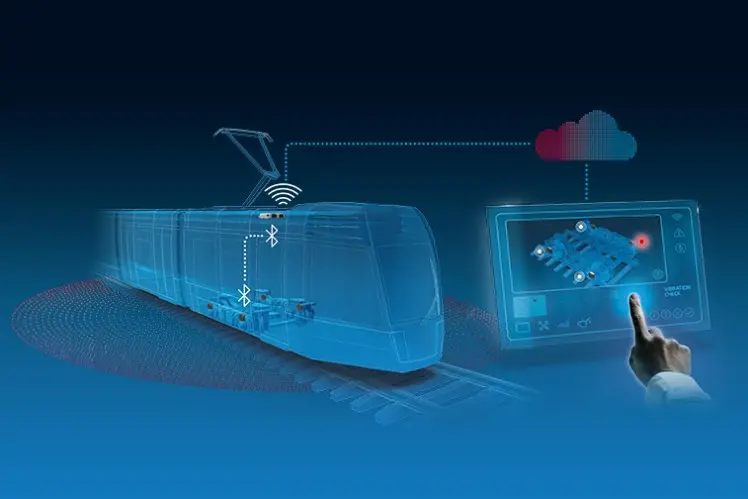

In the infrastructure and driveline monitoring system, the VCU Pro Onboard Unit serves as a secure gateway, by triggering measurements and collecting data from the wireless Bluetooth sensors Heavy Duty TAG. The collected measurement and rail track data is processed by the VCU Pro Onboard Unit and securely transferred to the ZF IoT Cloud. Rail operators receive permanent analyses that help in the detection of wear, damage, and potential danger spots at an early stage. Maintenance cycles can thus be planned based on the condition, efficiency can be increased, and unplanned downtime can be avoided.
