Batteries
Batteries with high energy density for the requirements of modern cyclists

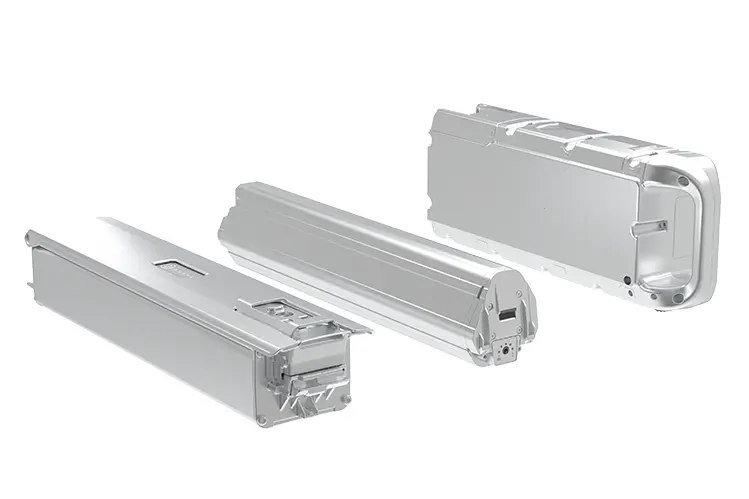

Batteries for the Sachs RS drive system

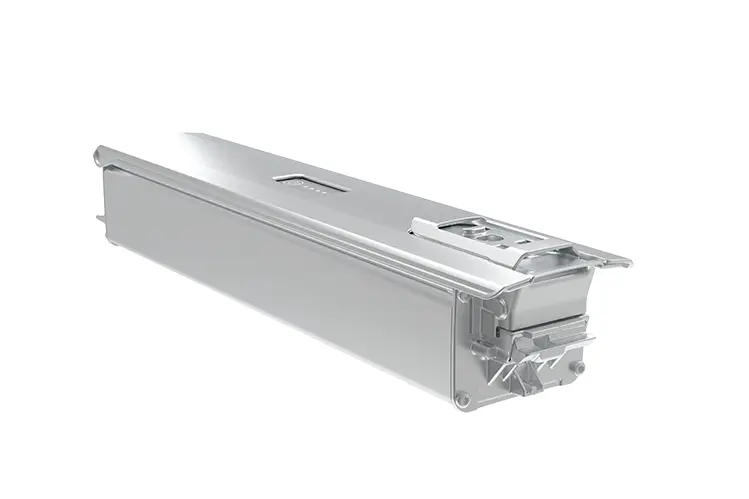

Sachs SI 651.01 battery for Sport/MTB
Sachs SI 725.01 battery for Sport/MTB
Sachs LV 814.01 battery for cargo bikes
Key Facts
What can Batteries provide?
Batteries are an important part of the Sachs RS drive system. These are specially adapted to the requirements and versatile areas of use of the Sachs RS system. The batteries meet the latest performance standards and are available in capacities from 725 Wh to 814 Wh. Suitable solutions are offered for the Cargo and E-MTB sectors.
Details
Sachs SI 725.01 battery for Sport/MTB
The battery is designed for sporty demands and off-road challenges. Thanks to 725 Wh, the Sachs SI 725.01 provides even more range at a lower weight.
- Removable high-performance battery
- High power density
- Developed for a new generation of motors with 48 V
- Stable mount for sportive E-MTB use and high strain usage
- Flexible mounting options
- Aluminum extrusion housing
- Weight: 3.950 g
- Energy: 725 Wh
- IEC 62133 certification
- IPX4
- Simple handling
- Peak power 30 A, continuous power 25 A
- High effectivity – low thermal losses
- Direct Mount Battery Management System
- Charge in-bike or separately
- USB2CAN ready
Sachs SI 725.01 battery for Sport/MTB
Sachs LV 814.01 battery for cargo bikes
The battery is designed for cargo-bikes with heavy loads. The transportation of loads whose weight and size far exceed those of conventional two-wheeled transport objects places special demands on the bike and its individual components. This applies in particular to the battery.
With the Cargo battery, large capacities of more than 1.5 kWh can be achieved. A specially developed continuous cast aluminum C-profile ensures a stable mount. The range can be extended using a second, parallel battery and an easy-to-operate switch. The battery has a diffusion-open housing and an intelligent charger.
With the Cargo battery, large capacities of more than 1.5 kWh can be achieved. A specially developed continuous cast aluminum C-profile ensures a stable mount. The range can be extended using a second, parallel battery and an easy-to-operate switch. The battery has a diffusion-open housing and an intelligent charger.
- Large-capacity battery for cargo bikes
- Specifially developed holder for cargo bikes and special vehicles
- Flexible charging options
- Aluminum C-profile housing, individually paintable
- Own locking mechanism
- LED display
- IP Protection Class 67
- Twin-core (two batteries) set-up possible with switch box
- Ergonomic housing and handle
- USB2CAN ready
Sachs LV 814.01 battery for cargo bikes
