Sachs RS - Drive Unit
Powerful all-round motor
Sachs RS drive unit for e-bikes
Sachs RS drive unit for e-bikes
Sachs RS drive unit for e-bikes
Sachs RS drive unit for e-bikes
Key Facts
What can Sachs RS - Drive Unit provide?
The Sachs RS offers high performance over a long range, even at low cadence. This unparalleled power is delivered at a consistently high level: whether the user is on steep and demanding uphill rides or on the daily commute through town with two kids in the trailer. Our four different power modes offer flexibility to find the support you need. The intelligent software programming delivers the power to the rider in a controlled and harmonious way. Available in both Pedelec and S-Pedelec versions.
Details
Benefits
- 47% more torque in comparison
- Powerful support, especially uphill, when necessary.
- Full torque already at low cadence
- Even technically less experienced riders can easily experience the Sachs power, in stop and
go or on cracking mountain tours.
- Even technically less experienced riders can easily experience the Sachs power, in stop and
- High efficiency
- Despite the power you are not going to lose any range. Bei gleichem Energieverbrauch
bringt der Sachs RS jeden schneller auf den Gipfel
- Despite the power you are not going to lose any range. Bei gleichem Energieverbrauch
- Fully configurable
- Whether leisure, cargo or mountain bike: The Sachs RS can be individually adjusted to each
type of rider and thus delivers the perfect setup.
- Whether leisure, cargo or mountain bike: The Sachs RS can be individually adjusted to each
- Power with endurance
- In riding tests, the Sachs RS has achieved extremely high ranges. More kilometers and more
meters in altitude mean more riding pleasure on sporty tours or more safety in the city.
- In riding tests, the Sachs RS has achieved extremely high ranges. More kilometers and more
- Further advantages for you as a dealer

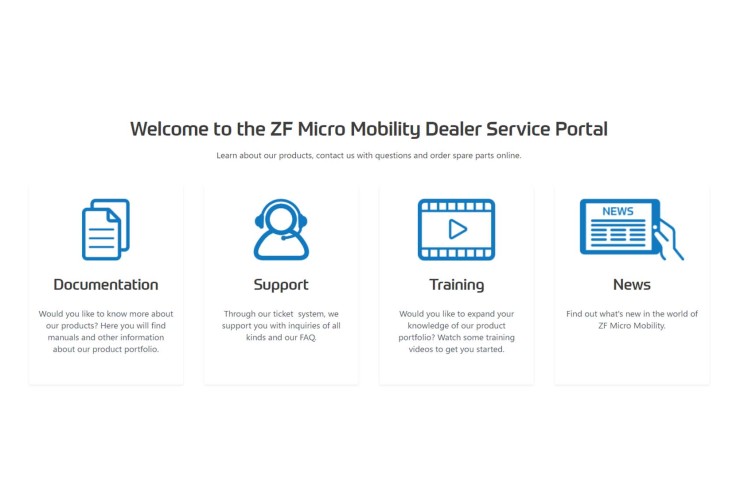

- ZF Micro Mobility has established a Premium Service for dealers, from which all Sachs RS
customers benefit. Our Service Tool is adjusted to the need of dealers: Simple and userfriendly. Service in the usual high quality.
- ZF Micro Mobility has established a Premium Service for dealers, from which all Sachs RS
Technical data
| Motor power: | 700 watts at 112Nm. max. 112Nm/180.; Cadence 40U/min: 55 Nm, 60-90U/min: 112Nm |
| Speed: | 25km/h or 45km/h |
| Sensors: | Cadence-, power- and speed sensor |
Chainrings and Chainrings size: | Single or double chain ring possible Bolt circle; (4 point, 104mm); Belt possible 30 teeth min.- 50 teeth max. |
| Axle standard: | ISIS®Drive |
| Q-Factor: | 178mm (ISIS®-Axle width 135mm) |
Chain guide Chain line (CL): | ISCG05 System prepared 52,00mm (Boost-Standard) |
| Weight: | 3,5kg |
| Colour: | Black |
| Motor mounting: | 2x3 M6 Screws |
| Use case: | Cargo, MTB |
| Support modes: | 4 |
| Batteries: | Individual coordination with OEM |
| Displays: | Open system - Individual adaptation from OEM |
| Service: | Servicetool für OEM's and dealers |
| Options: | Bluetooth Connectivity via Sigma EOX® Remote 500 |
