Hybrid System
Complete hybrid driveline system from a single source
Key Facts
Hybrid systemIncluding e-motor, converter, auxiliaries and controlsSingle sourceIncreases reliability, efficiency and quality of the driveOne contact personFor the complete drive system saves time and money
ZF offers the complete hybrid driveline from a single source. In addition to the broad portfolio of hybrid transmissions ZF supplies complete systems with electric motors, flexible couplings, electric pumps, inverters and electric control systems. Customers benefit from the professional expertise of ZF and can rely on hybrid drive systems, whose components are already perfectly harmonized with each other. The system is configurable to various application in the appropriate power range.
Gallery

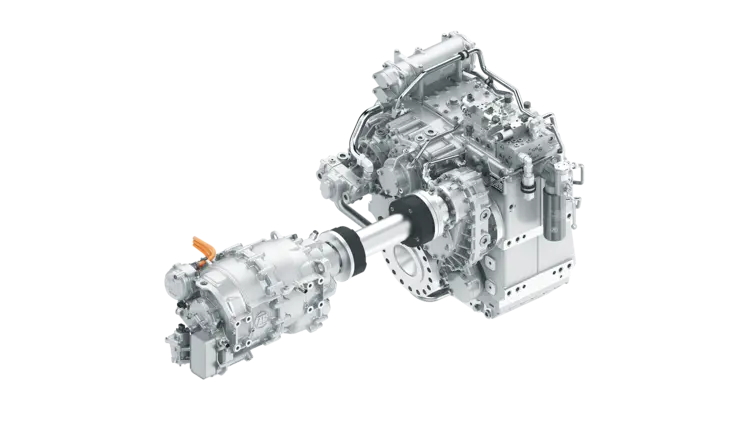

ZF 5200A PTI with CeTrax
ZF Tunnel Thruster TT 3000, Z-Drive
Fixed Pitch Propeller Shaftline System
ZF offers complete hybrid driveline from a single source
Details
Technical information
Hybrid drives can offer clear benefits, especially in pure electric operation. In this operating mode, the drive does not consume diesel or a comparable fuel, but uses electrical energy instead. At the point of use, the drive produces no direct exhaust emissions. At the same time, electric operation can reduce noise compared with diesel operation (depending on the vessel configuration, installation and operating conditions). With compact, integrated hybrid solutions from a single source, ZF supports shipyards, vessel owners and operators in implementing modern drive concepts. The standardized complete solutions cover electric power ranges from 150 to 750 kW and combine depending on the system configuration, hybrid transmissions, electric drives, flexible couplings, electric pumps, inverters and electric control units. The coordinated components support efficient integration, a consistent system design and service-friendly processes. Depending on the operating profile and maintenance concept, they can also support a long service life. And should a service case arise, a central point of contact is available. This facilitates coordination and simplifies the process.

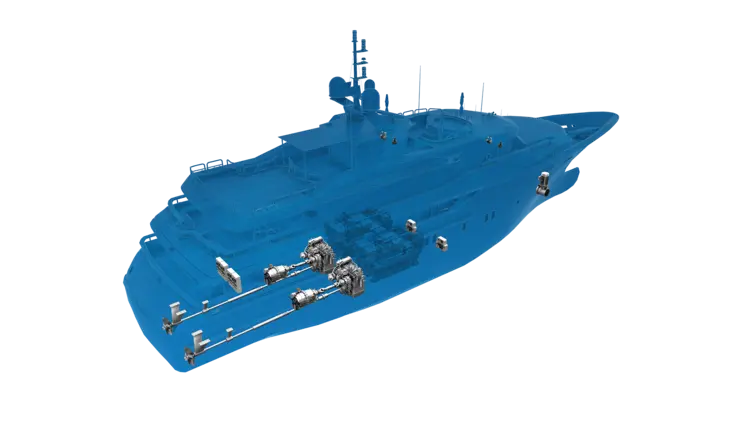

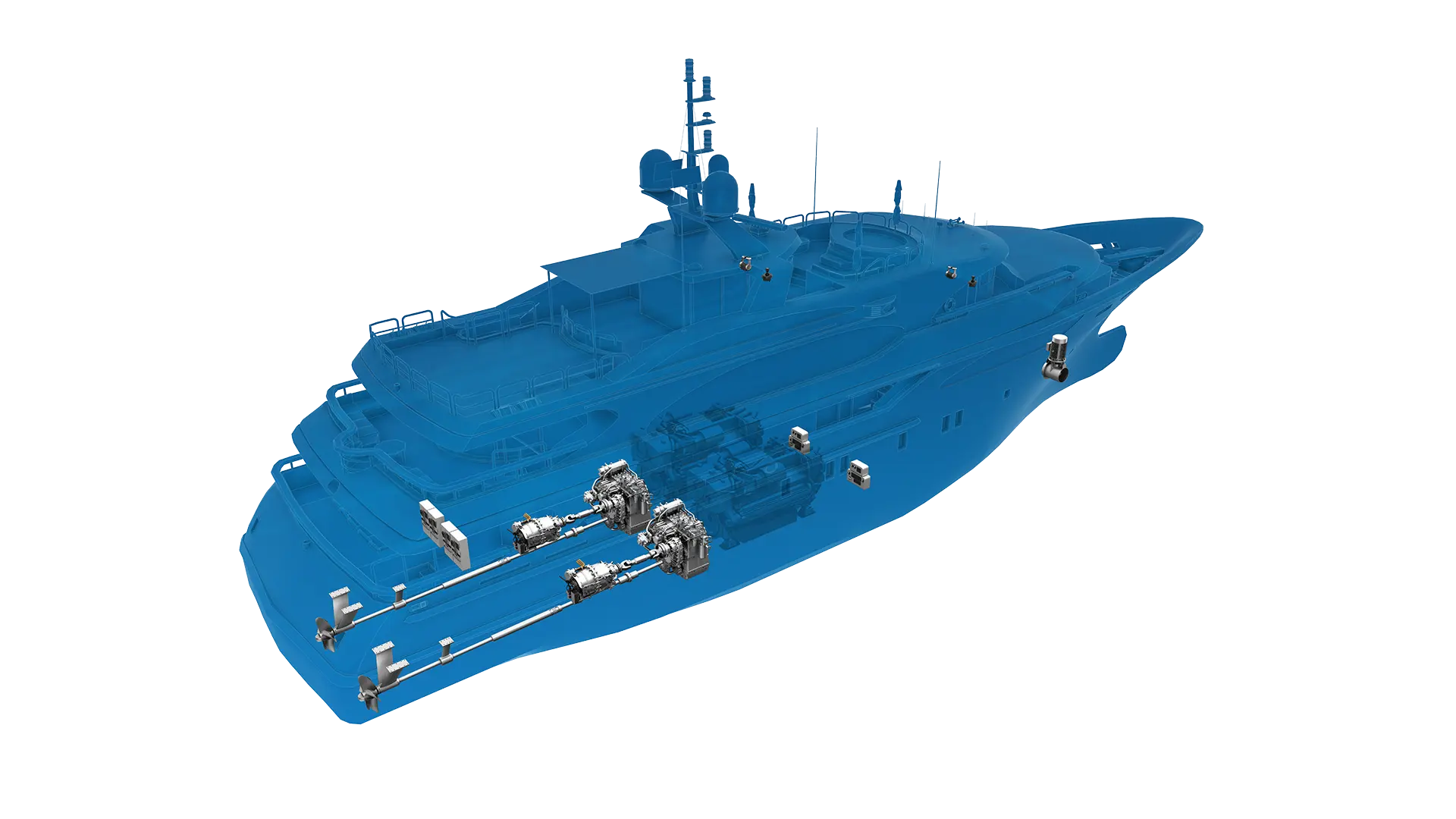

From super yachts to tugboats: ZF offers complete hybrid maritime solutions with additional electric power between 150 and 750 kW
Components at a glance
Hybrid transmissions
The portfolio of hybrid transmissions covers a power range up to 12,000 kW (ZF 60000 series). Both manufacturers and operators benefit from the robust design, the highest degree of reliability and flexibility for customer-oriented installations. All hybrid transmissions are equipped with an additional power take-in (PTI), via which an electric motor alone or in conjunction with the conventional power unit drives the propeller shaft.
Electric motor
Electric motor
The hybrid transmissions can be combined with electric motors and converters between 150 kWe and 750 kWe. The combination of these two innovative technologies in one propulsion system guarantees perfect interaction and optimum power delivery.
Power electronics
Power electronics
The scope of delivery also contains the power electronics with dedicated components installed in the control cabinet.

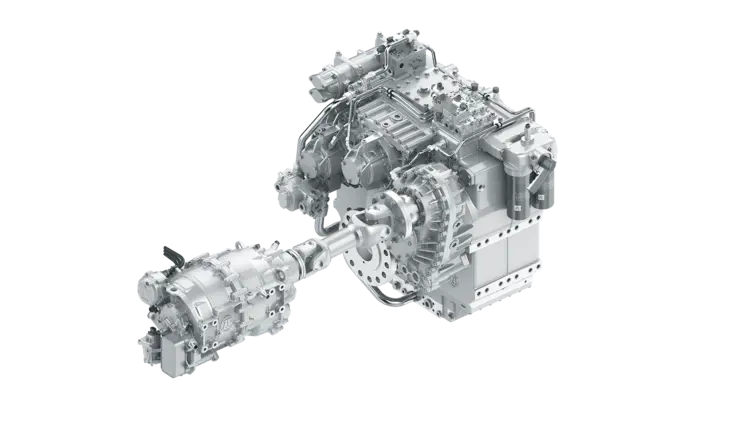

Hybrid transmission with e-motor
Tunnel thruster
Available in a range up to 2,500 kW for all kind of vessels, for auxiliary use as well as for essential use for more demanding applications such as dynamic positioning.
Electric control systems
ZF Marine’s electronic control systems are at the leading edge of electronics technology. The products incorporate well-proven hardware and software to ensure reliability, easy operation and maintenance.
Electric control systems
ZF Marine’s electronic control systems are at the leading edge of electronics technology. The products incorporate well-proven hardware and software to ensure reliability, easy operation and maintenance.
Tunnel thruster, Z-Drive
Fixed pitch propeller and shaftline
ZF offers in addition to the Shaftline a large range of fixed pitch propellers for applications in all types of vessels, which can be tailored according to customer needs. Fixed pitch propellers from ZF guarantee highest efficiency and excellent comfort when cruising.
ZF offers in addition to the Shaftline a large range of fixed pitch propellers for applications in all types of vessels, which can be tailored according to customer needs. Fixed pitch propellers from ZF guarantee highest efficiency and excellent comfort when cruising.

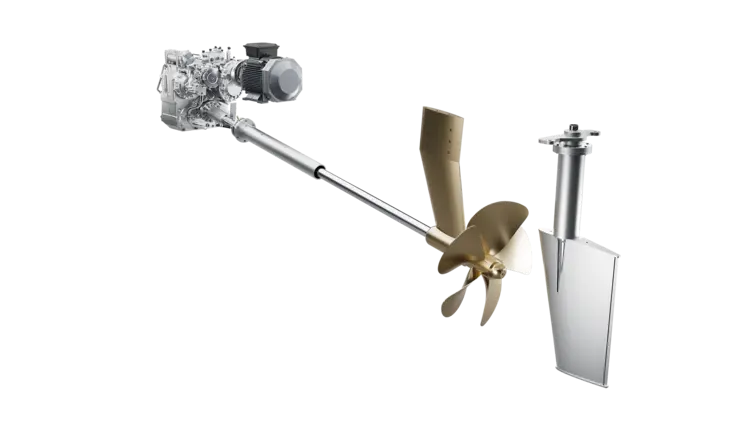

Fixed pitch propeller shaftline system
Product configurator
Here you can find technical information to define the product best suited to your application with the Marine Product Selection Guide.
Select your solution here
Select your solution here
