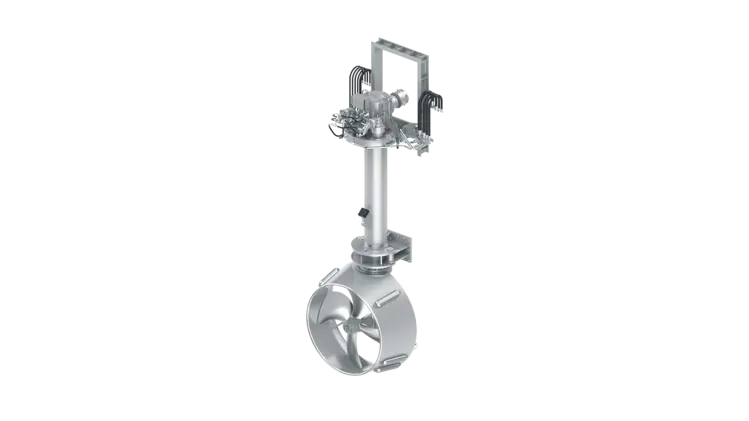

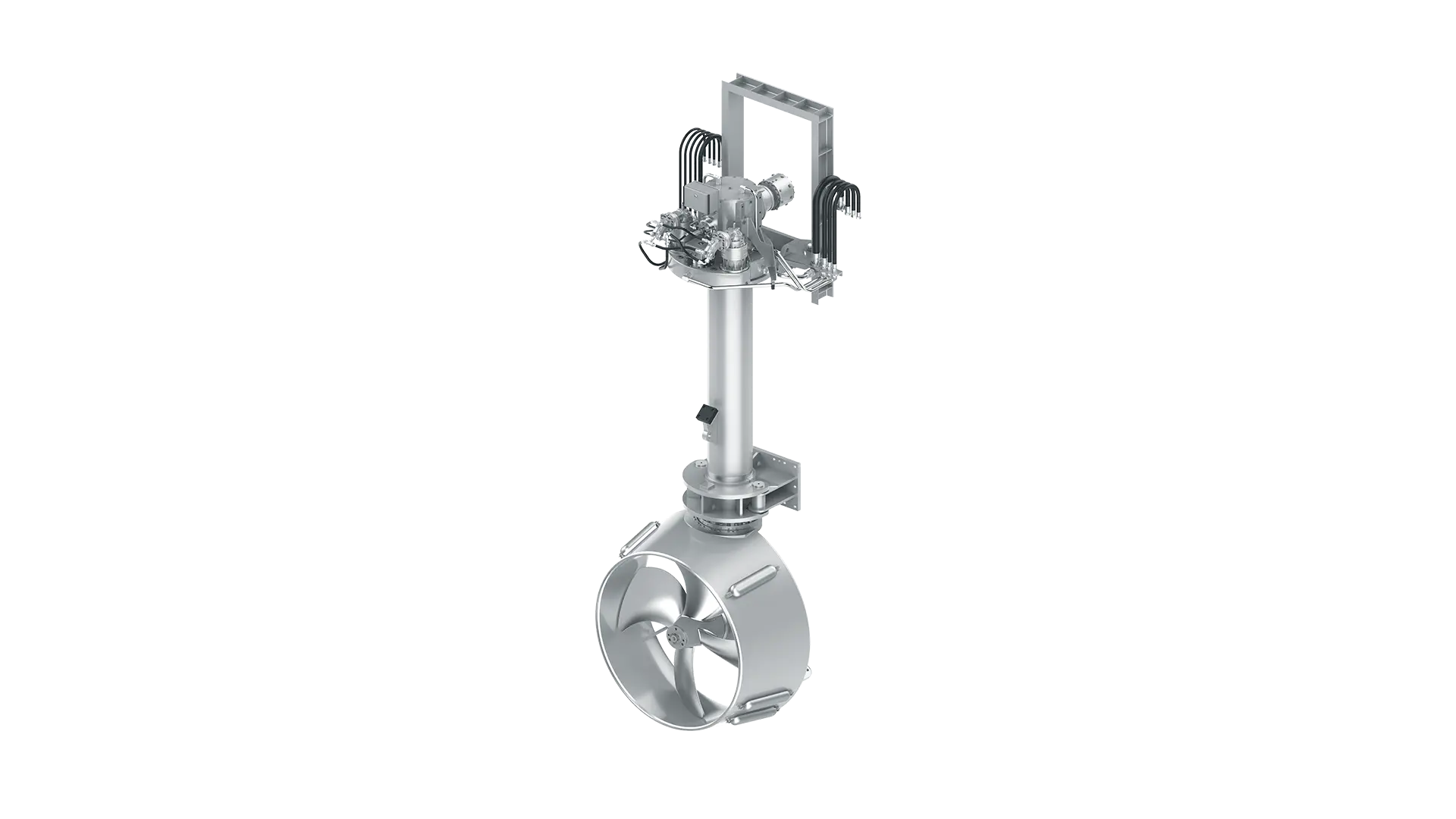

Stern Mounted Azimuth Thrusters

All ZF azimuth thrusters can be customized according to the customer’s requirements. The stern mounted azimuth thruster is available as an L-drive or Z-drive and can be combined with diesel, electric or hydraulic drive options. ThrusterCommand is an integral part of the propulsion system.

• Mounted against the stern of the vessel

• Available with skid for diesel engine

• Stem length can be chosen to suit the vessel design

• Depth adjustment of the propeller for operation in various water depths

• Swing out functionality for maintenance of the thruster in afloat condition

• Available with diesel, electric or hydraulic drive options

• Electric or hydraulic steering as well as fresh water or sea water cooling available

• Fixed pitch propeller, optionally with GS or GT Nozzle, optimized for speed or thrust

• Propeller protection, rope cutters and anodes available to protect the thruster

• Classification by all major classification societies

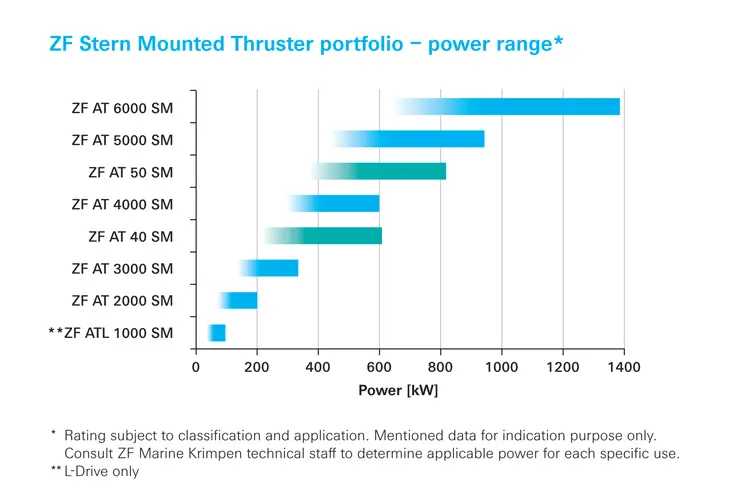

*Rating subject to classification and application. Mentioned data for indication purpose only. Consult ZF technical staff to determine applicable power for each specific use.
