Shallow Draught Thrusters
High maneuverability for shallow water environments
Key Facts
Shallow draughtDesign allows low water intake speedFull powerUp to 825 kilowattsManeuverability360° maneuverability without thrust deduction
The shallow draught thruster is the perfect solution for vessels which are required to navigate in shallow waters. It is typically used in pontoons, landing crafts, ferries and workboats as main propulsion thruster, auxiliary propulsion thruster. The shallow draught thruster can be provided in a performance range up to 825 kW.
Details
Options
The shallow draught thruster is available as an L-drive or Z-drive and can be combined with diesel, electric or hydraulic drive options. ThrusterCommand is an integral part of the propulsion system.
Well mounted from top
Available with diesel, electric or hydraulic drive options
Electric or hydraulic steering as well as fresh water or sea water cooling available
In certain applications, the shallow draught thruster can be an alternative to a tunnel thruster
Classification by all major classification societies
*Rating subject to classification and application. Mentioned data for indication purpose only. Consult ZF technical staff to determine applicable power for each specific use.

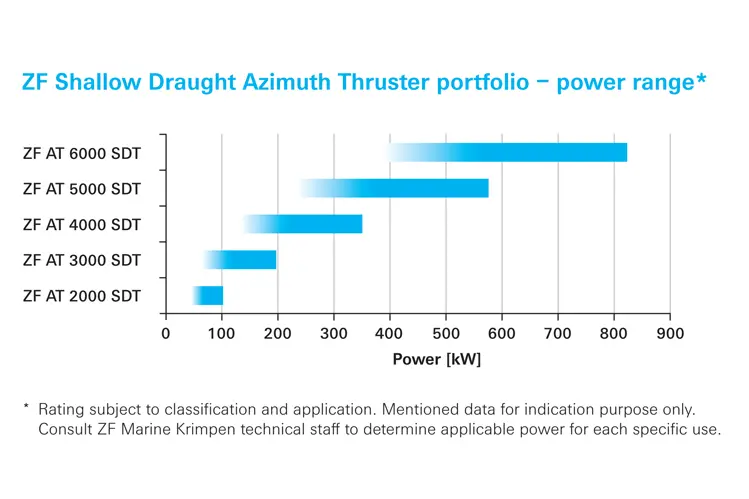

Power range of the ZF shallow draught thruster portfolio*
