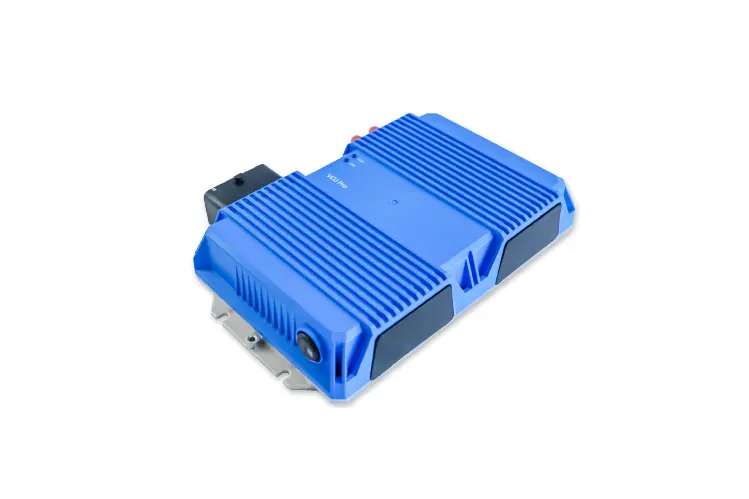

VCU Pro

Advanced onboard unit from the vehicle connectivity unit series

Key Facts

Stable & secureTwo independent processors guarantee a stable connectionVersatileVariety of interfaces, including Wi-Fi, GNSSReliableSecure acquisition and processing of sensor data

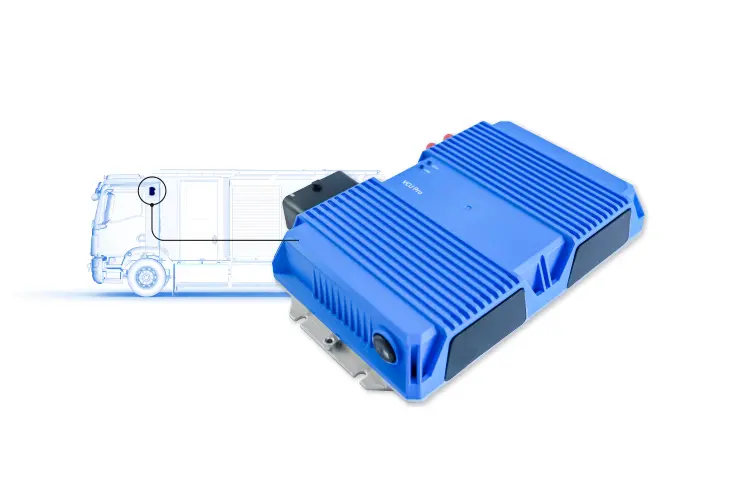

VCU Pro is the advanced onboard unit from the Vehicle Connectivity Unit series. With 4 CAN interfaces (2 standard CAN and 2 CAN FD), 4 analog inputs and 4 digital outputs VCU Pro is a professional and robust gateway. It allows emergency vehicles to be fully connected. IP Protection Class: IP55 (IP69K optional) Power Supply: 9–36 V DC

Details

Technical information

Dimensions:	200 mm × 122 mm × 40 mm
Operating temperature:	-40 °C to +70 °C (DIN EN 50155 Class TX)
Power supply:	9 to 36 V DC
CPU:	ARM Cortex A8 ® 1 GHz
Memory:	512 MB RAM 8 GB eMMC Flash
Sensors:	3-axis Accelerometer 3-axis Gyro
GNSS:	uBlox NEO-M9V with UDR and ADR (Dead Reckoning), GPS, Glonass, BeiDou, Galileo
Protection class:	IP55 (IP69K optional)
Certificates:	CE FCC
