TraXon Hybrid 2 - TraXon 2 with Hybrid Module
Innovative automated manual transmission for hybrid mobile crane and special vehicle applications
Key Facts
Simple integrationHybridization of current vehicle platforms with minimized effort and complexityEco-friendly mobilityEnables emission-free working, clean & efficient mobility in zero-emission zonesReliable solutionNew hybrid module for the tried-and-tested, highly integrated TraXon 2
ZF's TraXon Hybrid 2 is a trendsetting hybrid solution for mobile cranes and heavy special vehicles (as plug-in and full hybrid vehicles). It enables cost-effective electrification of the driveline – ideal for applications where high performance requirements have to be combined with precise controllability and efficiency. Based on the proven TraXon 2 design, the hybrid technology not only reduces the total cost of ownership (TCO), but also significantly reduces CO₂ emissions.
Gallery

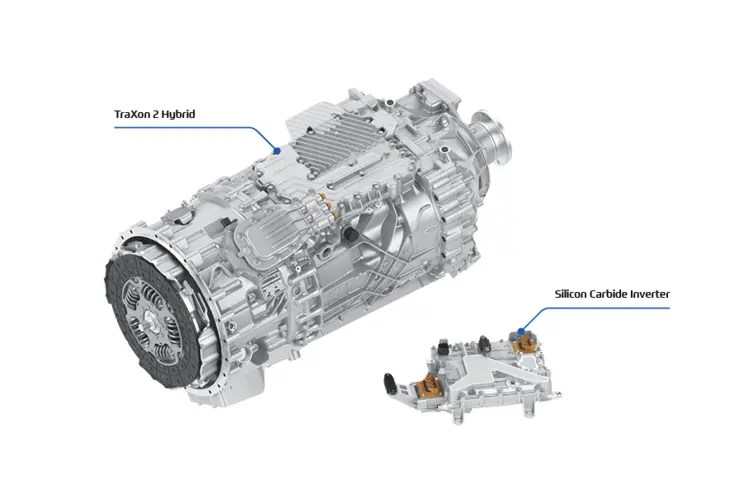

TraXon Hybrid 2
Details
Benefits
- Supports OEMs in transforming current vehicle platforms into hybrid platforms with minimized effort and complexity
- Premium, reliable performance and optimized energy efficiency to help support demanding vehicle requirements
- Equivalent or improved driving performance and range compared to conventional heavy-duty vehicle applications
- Noise and emission-free operation enables environmentally friendly working – ideal for use in urban or sensitive areas
Features and capabilities
- Permanent magnet synchronous hairpin electric motor, capable of delivering up to 190 kW continuous power
- Integrated one-gear transmission stage and a dedicated transmission control unit for seamless operation
- Independent 600 - 800 V silicon carbide (SiC) inverter, ensuring optimal e-powertrain efficiency
- Optional integration of ZF-Intarder and PTO for enhanced functionality
